211769-1
Manufacturer:
TE Connectivity
Mfr.Part #:
211769-1
Datasheet:
Description:

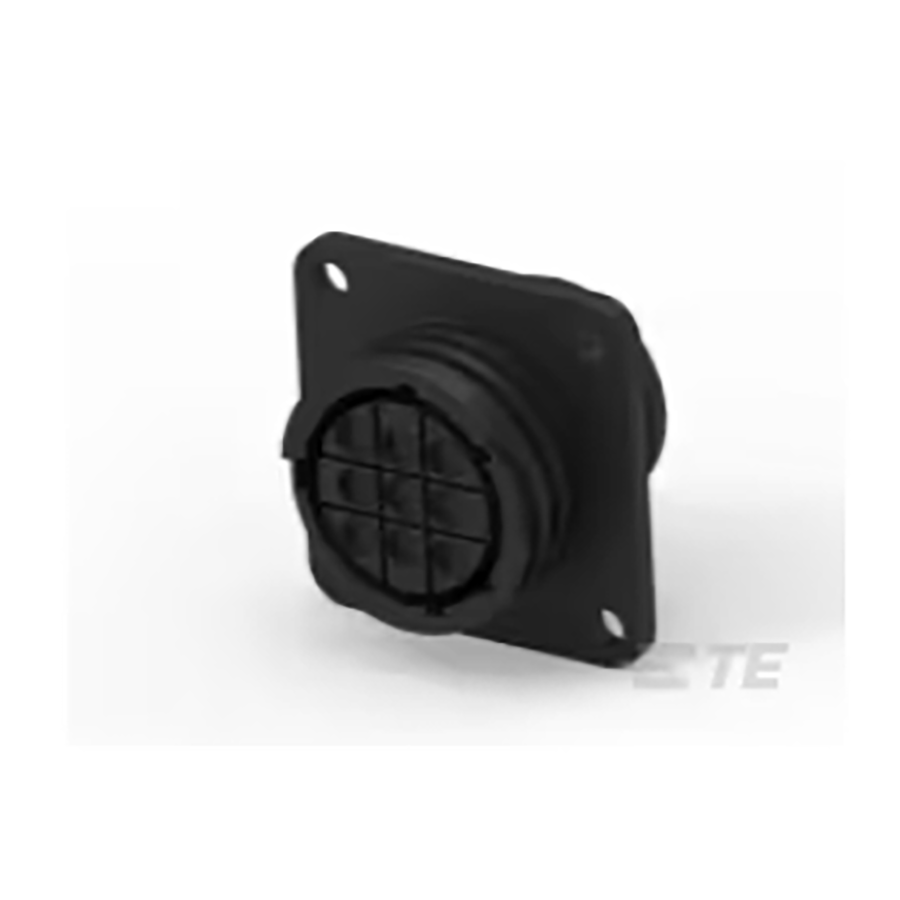

Circular Connectors Panel Female Crimp Socket
| Parameter | Value |
|---|---|
| Length | 27.18 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Height | 36.45 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 36.45 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | IP65 |
| Number of Terminals | 9 |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL, VDE |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 9 |
| ELV | Compliant |
| Body Material | Thermoplastic |
| Connector Type | Socket |
| Number of Positions | 9 |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Fastening Type | Threaded |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Thermoplastic |
| Insulation Diameter | 3.81 mm |
| Contact Gender | Female |
| Number of Power Positions | 0 |
| VDE Tested | Yes |
| Number of Signal Positions | 9 |
| Shell Material | Thermoplastic |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Retention | With |
| Mating Alignment | With |
| Contact Protection | With |
